WingSTEP Systems

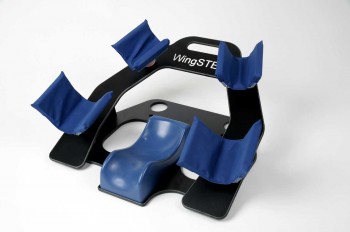

System WingSTEP High

The WingSTEP High system is specially designed for routine breast and thorax positioning with big CT apertures (bore diameter > 70cm).
Consisting of:
WingSTEP high Baseplate (P10107-465)
Pillow Standard A (P10107-240)
Arm Support Ball Joint / Pin Joint (P10107-444 /441)
Wrist Support Ball Joint (P10107-443)

ART.-NR.
P10107-741
System WingSTEP High – Pin Joint
P10107-743
System WingSTEP High – Ball Joint
P10107-745
System WingSTEP High for Varian – Ball Joint
P10107-754
System WingSTEP High MR – Ball Joint
System WingSTEP High Carbon

The WingSTEP High Carbon system is specially designed for routine breast and thorax positioning with big CT apertures (bore diameter > 70cm). Consisting of:
WingSTEP Carbon high Baseplate (P10107-499)
Pillow Standard A (P10107-240)
Arm Support Ball Joint / Pin Joint (P10107-444 /441)
Wrist Support Ball Joint (P10107-443)

ART.-NR.
P10107-750
System WingSTEP Carbon High – Pin Joint

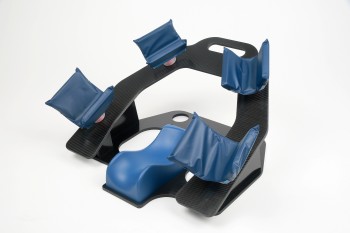

P10107-747
System WingSTEP Carbon High – Ball Joint

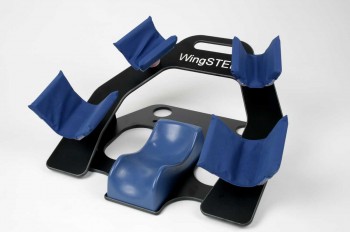

System WingSTEP Low

The WingSTEP Low system is specially designed for routine breast and thorax positioning with small CT apertures (bore diameter < 70cm). Consisting of:


WingSTEP low Baseplate (P10107-464)
Pillow Standard A (P10107-240)
Arm Support Ball Joint / Pin Joint (P10107-444 /441)
Wrist Support Ball Joint (P10107-443)

ART.-NR.
P10107-740
System WingSTEP Low – Pin Joint
P10107-742
System WingSTEP Low – Ball Joint
P10107-746
System WingSTEP Low for Varian – Ball Joint
P10107-753
System WingSTEP MR Low – Ball Joint
System WingSTEP Low Carbon

The WingSTEP Low Carbon system is specially designed for routine breast and thorax positioning with small CT apertures (bore diameter < 70cm).
Consisting of:
WingSTEP Carbon low Baseplate (P10107-498)
Pillow Standard A (P10107-240)
Arm Support Ball Joint / Pin Joint (P10107-444 /441)
Wrist Support Ball Joint (P10107-443)

ART.-NR.
P10107-749
System WingSTEP Carbon Low – Ball Joint
P10107-751
System WingSTEP Carbon Low – Pin Joint

WingSTEP Systeme simple steps

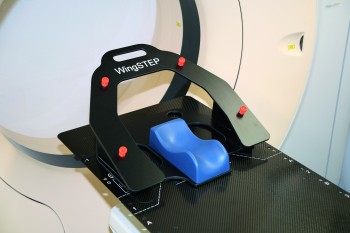

Step 1

Select the appropriate pillow for the patient and place it on the WingSTEP.

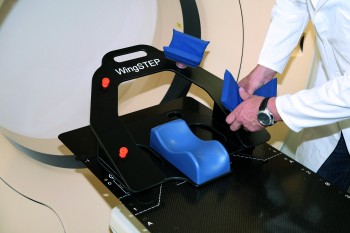

Step 2

Before first use: Click upper and lower arm supports into the ball joints.

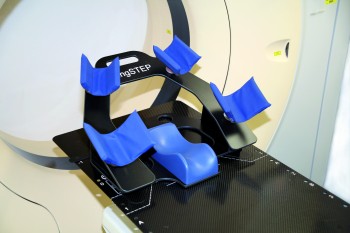

Step 3

Set the WingSTEP system on the treatment table.

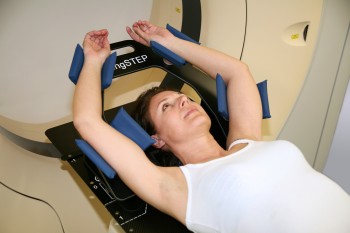

Step 4

Position the patient´s head on the head support. Place the patient´s arms above the head onto the upper and lower arm supports.
