HeadSTEP Systems

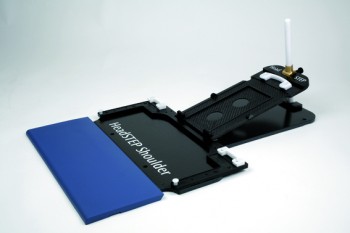

System HeadSTEP Shoulder

The HeadSTEP Shoulder system is designed for routine head and shoulder immobilization. It includes a height adjustment with 23 angles and a shoulder adapter. Consisting of:


HeadSTEP Shoulder Basic Module (P10107-413/429)
Pillow A, B, C, D, Y, Z, Distance Plate (P10107-200/201/202/203/204/205/206)
HeadSTEP Shoulder Adapter Extension (P10107-407)
HeadSTEP Shoulder Comfort Module (P10107-411)

ART.-NR.
P10107-706
System HeadSTEP Shoulder
P10107-711
System HeadSTEP Shoulder MR

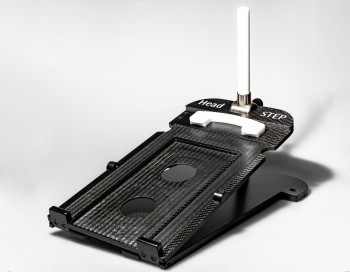

System HeadSTEP Carbon

The HeadSTEP Carbon system is designed for routine head and neck immobilization. It includes a height adjustment with 23 angles. Consisting of:


HeadSTEP Carbon Basic Module (P10107-100)
Pillow A, B, C, D, Y, Z, Distance Plate (P10107-200/201/202/203/204/205/206)

ART.-NR.

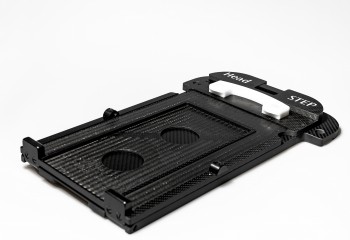

System HeadSTEP Flat

The HeadSTEP Flat system is designed for routine head and neck immobilization. Consisting of:


HeadSTEP Carbon Flat Basic Module (P10107-101)
Pillow A, B, C, D, Y, Z, Distance Plate (P10107-200/201/202/203/204/205/206)

ART.-NR.
P10107-703
System HeadSTEP Flat

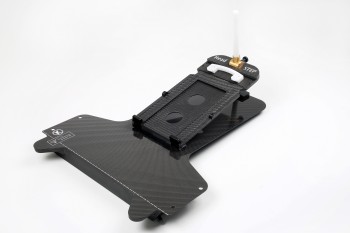

System HeadSTEP iBEAM evo Extension

The HeadSTEP iBEAM evo extension system is designed for routine head and shoulder immobilization using the iBEAM evo Couchtop and extends the end of the iBEAM evo couchtop by 515/615 mm. It includes a height adjustment with 23 angles and a shoulder adapter.
Consisting of:


HeadSTEP iBEAM evo Basic Module (P10107-402/472)
Pillow A, B, C, D, Y, Z, Distance Plate (P10107-200/201/202/203/204/205/206)
HeadSTEP Shoulder Adapter Extension (P10107-407)

ART.-NR.
P10107-702
System HeadSTEP iBEAM evo Extension
P10107-708
System HeadSTEP iBEAM evo Extension long

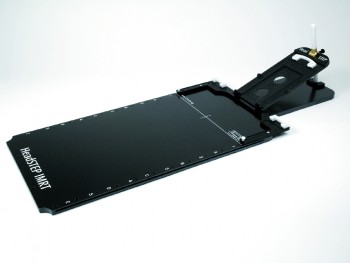

System HeadSTEP IMRT

The HeadSTEP IMRT is designed for routine head and shoulder immobilization using a normal couchtop and extends the end of
the couchtop. It includes a height adjustment with 23 angles and a shoulder adapter. Consisting of:


HeadSTEP IMRT Basic Module (P10107-412)
Pillow A, B, C, D, Y, Z, Distance Plate (P10107-200/201/202/203/204/205/206)
HeadSTEP Shoulder Adapter Extension (P10107-407)

ART.-NR.
P10107-705
System HeadSTEP IMRT
P10107-715
System HeadSTEP IMRT MR

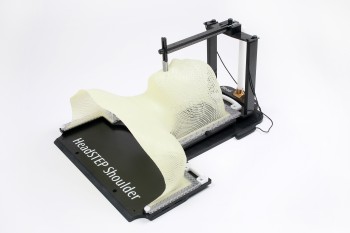

System HeadSTEP Bite

HeadSTEP Bite is an extended module of the HeadSTEP system providing high precision positioning and re-positioning for IMRT
and stereotactic radiation. Consisting of:


HeadSTEP Bite Post Set (P10107-447)
HeadSTEP Bite Angulating Fixation Set (P10107-448/449)
HeadSTEP Bite Silicon Covers (50 pcs) (P10107-450)
HeadSTEP Bite Quick Release (P10107-451)

ART.-NR.
P10107-789
System HS Bite
P10107-791
System HS Bite wide
P10107-793
System HS Bite MR
System HeadSTEP MR

The HeadSTEP MR system is designed for routine head and neck immobilization in the MRI. It includes a height adjustment with
23 angles. Consisting of:


HeadSTEP MR Basic Module (P10107-400)
Pillow A, B, D, Y, Z (P10107-255/256/257/261/262)
Indexing Adapter (P10107-406)

ART.-NR.
P10107-704
System HeadSTEP MR

HeadSTEP Systeme simple steps

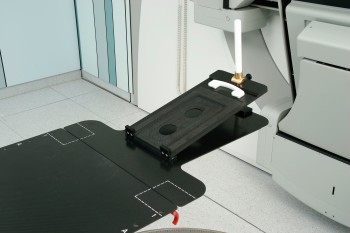

Step 1

Set the HeadSTEP system on the tabletop.

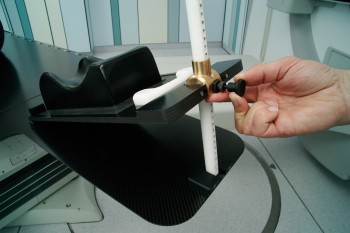

Step 2

Choose a suitable pillow and angle adjustment.

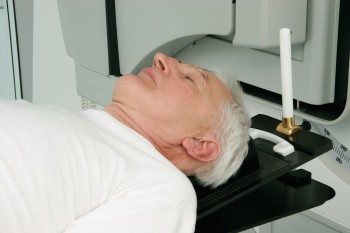

Step 3

Position the patient´s head in the head support.

Step 4

Center the iFRAME with the iCAST mask material over the patient´s face.

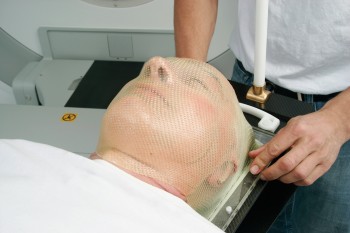

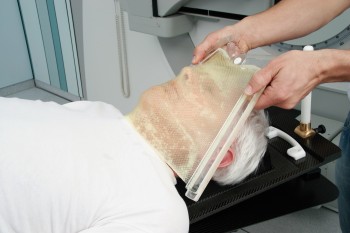

Step 5

Pull the iCAST mask material gently, carefully and steadily over the patient´s face, starting at the chin, until the outer frame touches the baseplate.

Step 6

Snap the frame into the designated bracket on the baseplate and lock it on the back end of the HeadSTEP.

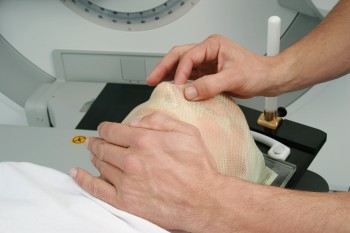

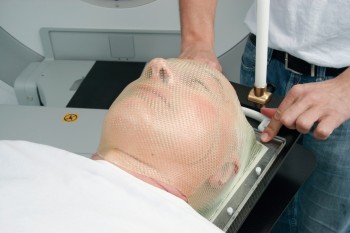

Step 7

Mold the mask material around the patient´s facial outline. The molding of the nose bridge is of crucial importance, as this is the reference point of the mask.

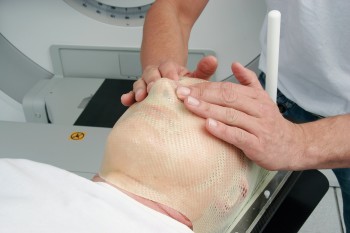

Step 8
Mold around the chin and the eyes, advising the patient to keep the eyes closed. let the mask cool off for 5 minutes until it is really hardened.
